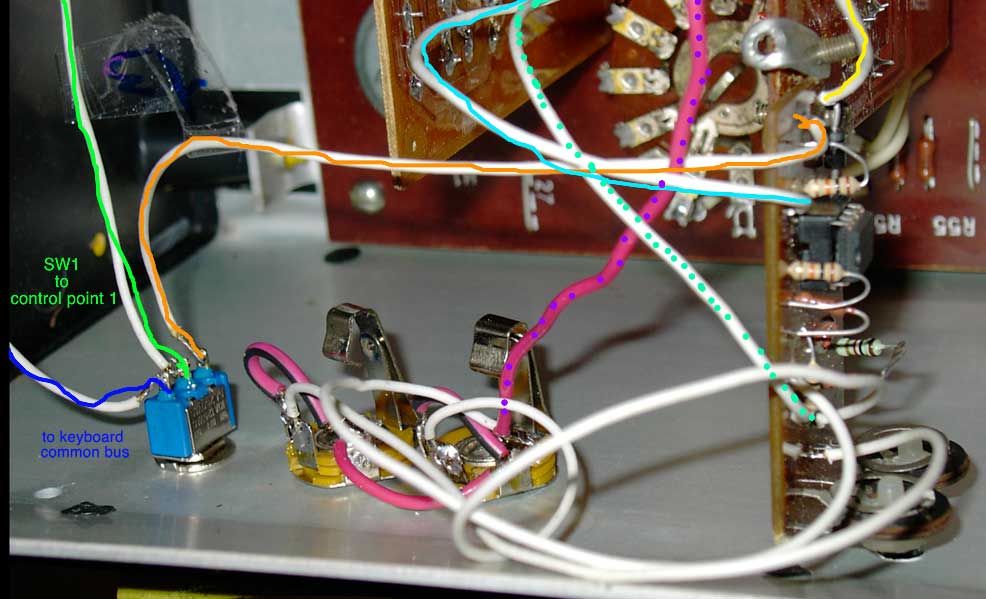

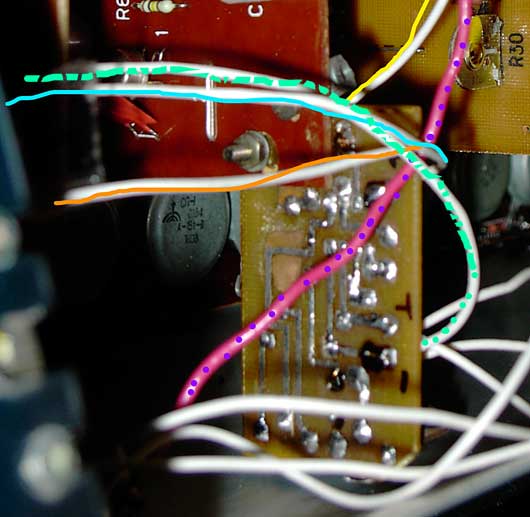

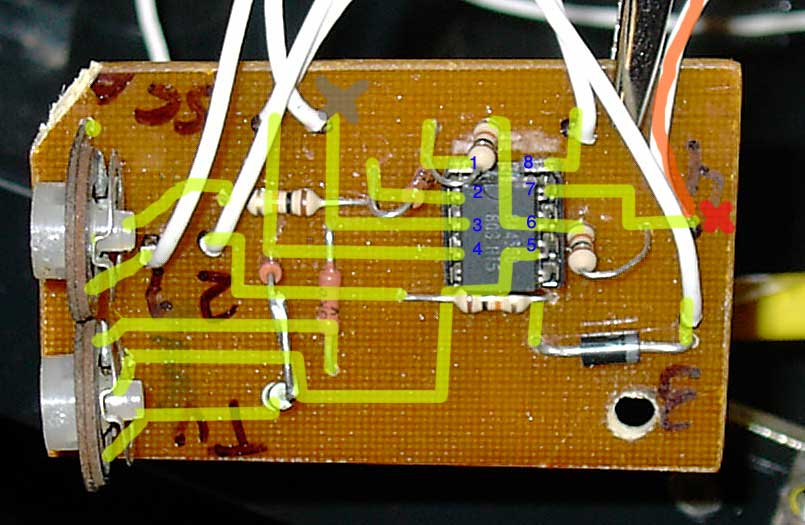

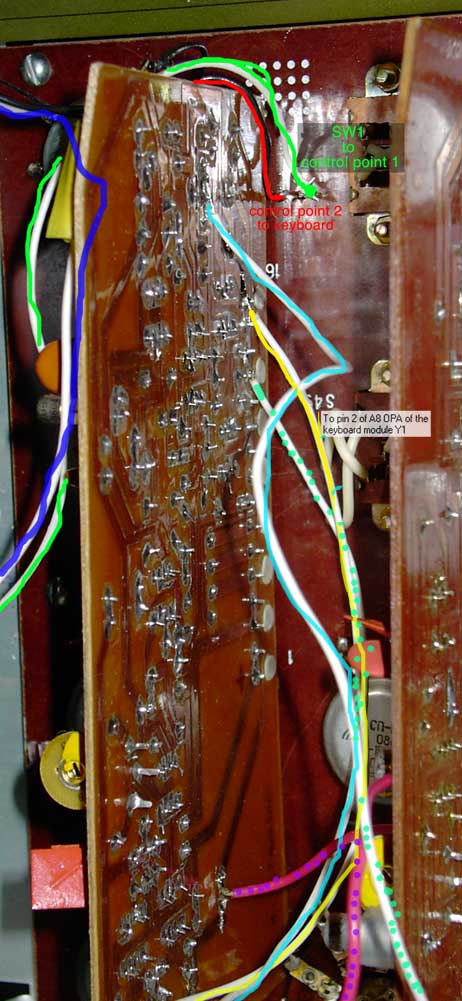

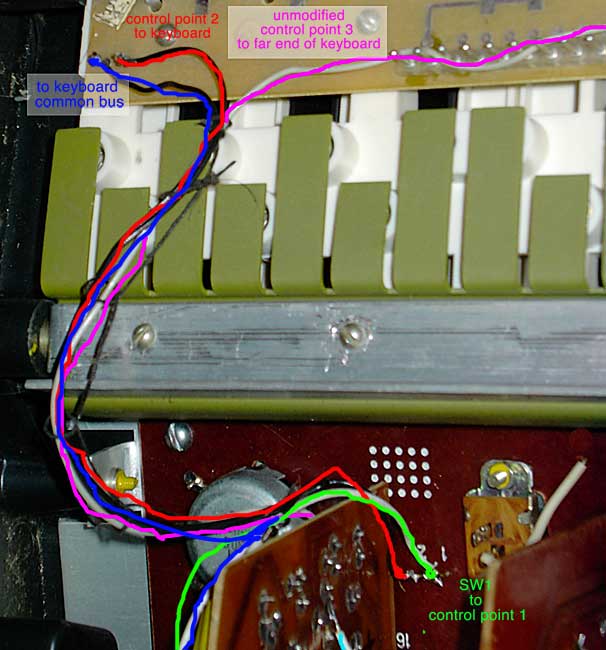

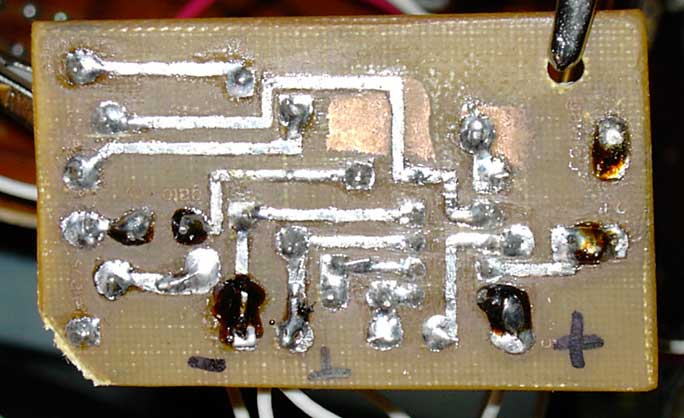

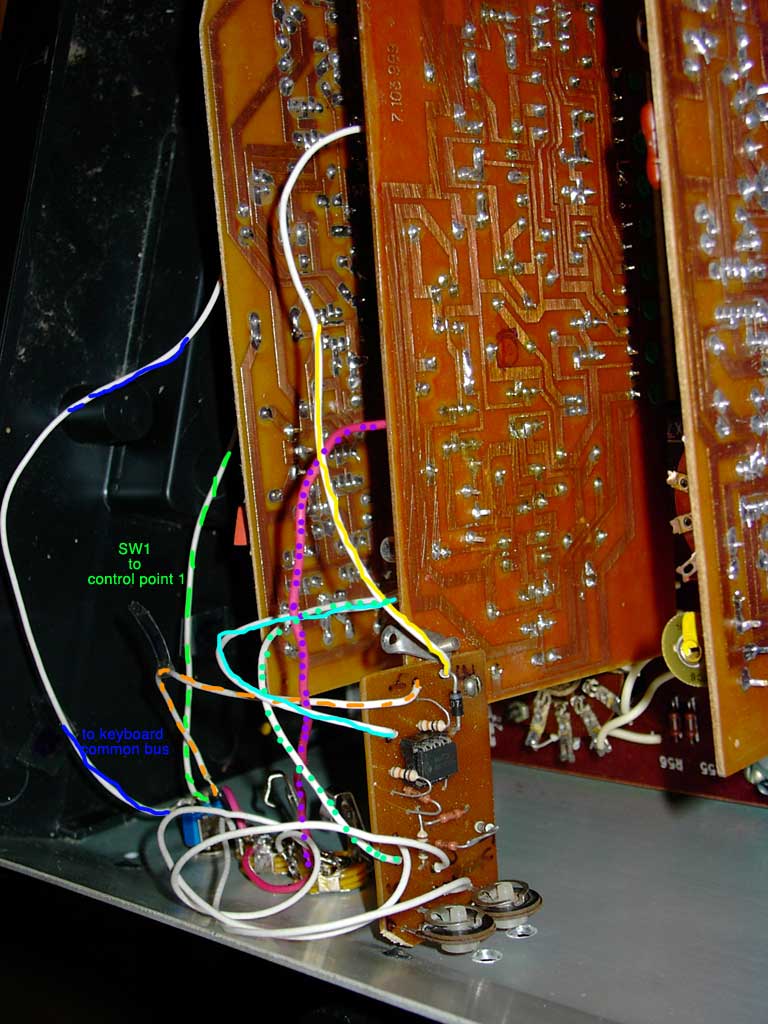

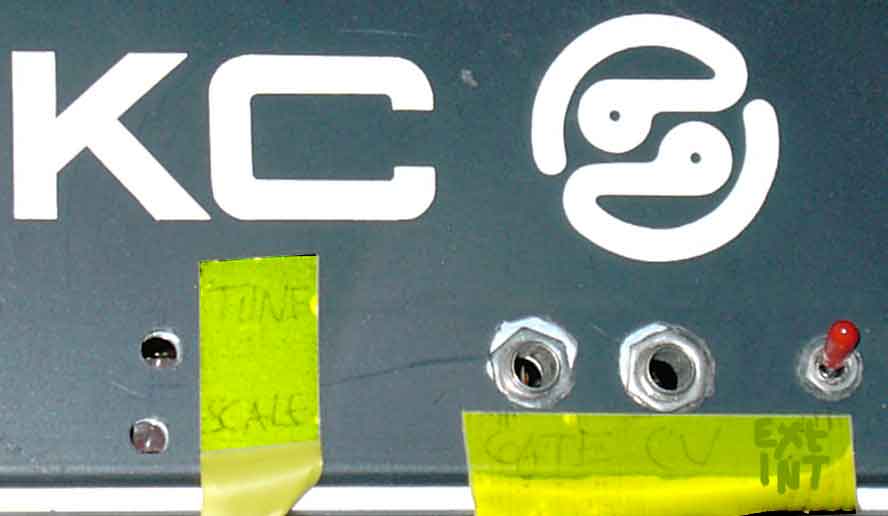

This is what the external CV gate mod for a Polyvox (Polivoks) looks like.

It works now. I had a problem with mine but we were able to trace it to a defective scale pot that was used for the mod and a mistake in the first set of mod schematics (since corrected).

A HUGE thanks to Vladimir Kuzmin for drawing up the mod and then troubleshooting it.

And a big thanks to Shawn Cleary (who sold me this synth and then worked with me when there was a problem)

(click on images to view in full res)

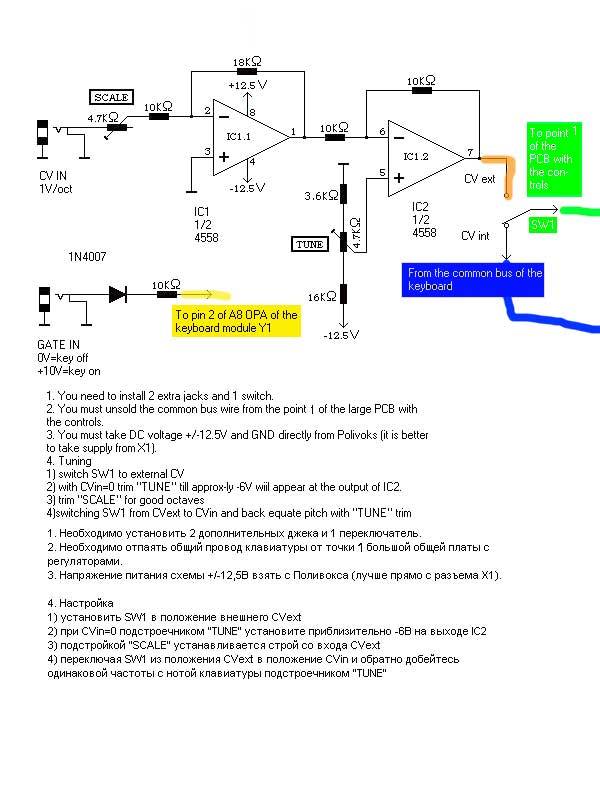

found on www.muztech.com/ with my added color key

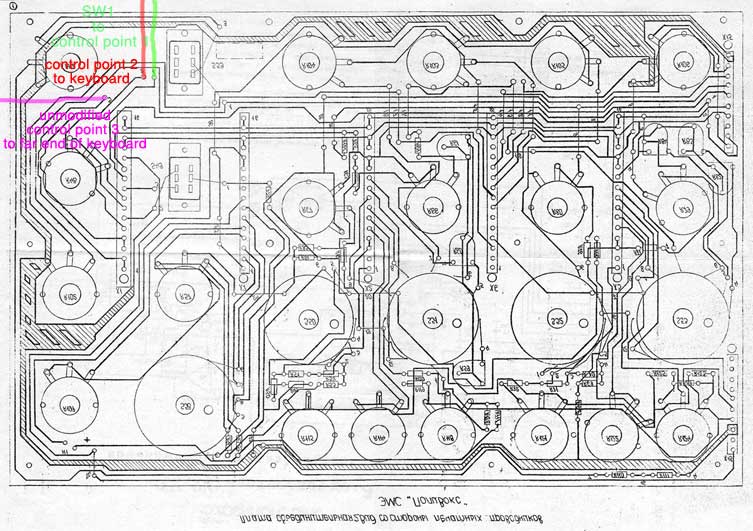

main board with connection points noted - note that I flipped and rotated this diagram to match the orintation of my photos other boards not involved can be found here	connections to keyboard mechanism
Y1 schemo	Y1 board
